Product Introduction

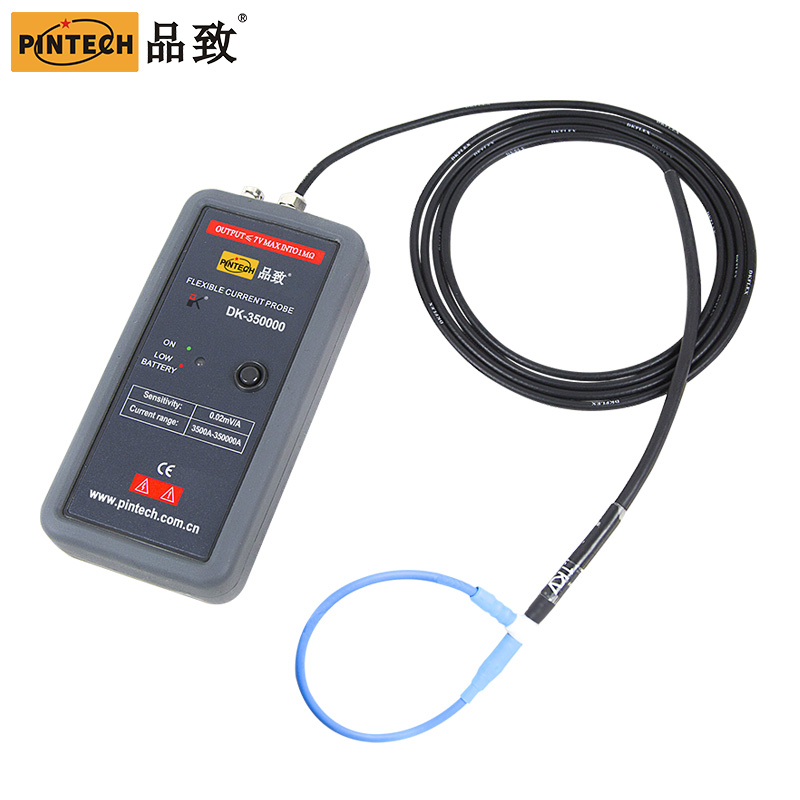

Product Name：	CW-350000(5Hz-30MHz,350000A) Flexible current probe
Short Description：	CW-350000 Bandwidth：5Hz-30MHz Accuracy：1%+2mV current：350000A

Detailed description ：

Type	Sensitivity mV/A	Peak Current (A)	Min. Current ( A）	Noise (mV Pk-Pk)	Bandwidth (3db)	Accuracy	Coil Length	Line Length
CW-350000	0.02	350000	3500	5	DC-5Hz~30MHz	1%+2mV	300mm~1000mm	1m~4m
General characteristics
Coil cross section(Max)	3kV
Temperature Range	-20℃-100℃
Coil cable diameter	1.8/3.5/4.5/8mm
Power supply	DC Supply Adaptor 6V or Battery 4*AA
Size	1708630mm
